Taking thin films to the extreme
|
(Nanowerk News) Applying a well-known optical phenomenon called thin-film interference, a group of researchers at Harvard University has demonstrated the ability to "paint" ultra-thin coatings onto a rough surface -- work that holds promise for making future, flexible electronic devices, creating advanced solar cells and detailing the sides of next-gen rocket ships and spacecraft with extremely lightweight decorative logos.
|
When light passes through oil in water, it becomes iridescent, revealing a myriad of colors that glisten and shift along with your perspective. This behavior, known as thin-film interference, is well-studied and is implemented in creating all manner of optical devices. Recently, the Harvard team demonstrated that this behavior can persist when patterned on extremely rough and flexible surfaces.
|
![Gold-coated notebook paper pieces with ultra-thin germanium films of different thickness deposited on top](id37582.jpg) |

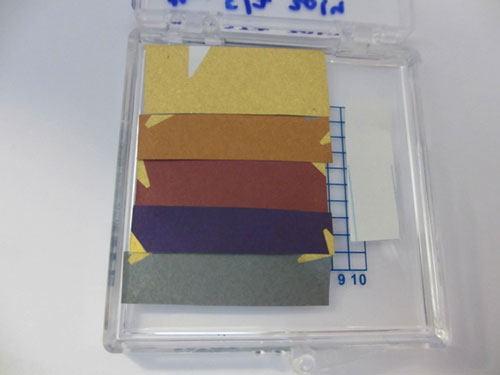

Gold-coated notebook paper pieces with ultra-thin germanium films of different thickness deposited on top.
|
“Normally when you think of thin-film interference, you think of smooth substrates,” said Mikhail Kats, a postdoctoral fellow at Harvard University working in the lab of Federico Capasso. He and Capasso describe their work in the journal Applied Physics Letters ("Ultra-thin optical interference coatings on rough and flexible substrates"). “With increasing roughness the effect is expected to fade and you just don’t get this coherent behavior.”
|
Optically speaking, notebook paper is at the far end of the roughness spectrum, owing to its fibrous composition. However, after the researchers deposited onto paper an initial layer of gold and a subsequent layer of germanium, the paper began to display interference. The optical trickery lies in the influence of the film’s angle of incidence.
|
Traditionally, thin films needed to be transparent and no thinner than roughly one-quarter of the wavelength of light – 600 nm – to exhibit interference colors. This is due to the phase shifts, or changes in optical path length, which occur as a result of changes in the observer’s angle of incidence. The path length directly corresponds to which colors appear to an observer - tilt your head and they change slightly. At the nanometer scale, however, the amount of phase shift that occurs is greatly diminished due to the significantly smaller thickness of the films, resulting in a decrease in the angle of incidence’s effect. Tilt your head now, and the colors remain unchanged.
|
“You can use this effect to essentially see atomic monolayers, bilayers or tri-layers with your naked eye,” Kats said.
|
![Scanning electron microscope image of gold/germanium-coated paper](id37582_1.jpg) |

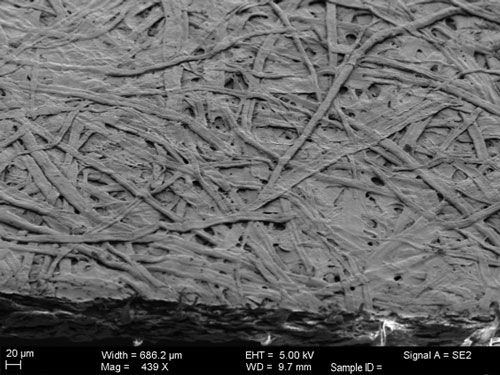

Scanning electron microscope image of gold/germanium-coated paper. The paper fibers are roughly 10 micrometers in diameter.
|
This would allow for the coloring of metallic objects by use of far less material than with traditional paint – a claim confirmed by the orange, indigo, and violet hues visible from the 7, 10 and 15 nm layered sheets of paper.
|
“There’s a famous story where, by not painting the space shuttle’s fuel tank, 600 pounds were saved, because that’s how much the paint weighed,” Kats said. “If you wanted to put a logo on something that you’re sending up in space, or you wanted to color it, here you could do it without almost any increase in weight.”
|
Future applications of the films include making extremely thin, flexible photodetectors and optoelectronic devices, including solar cells.
|
“I don’t think a solar cell made out of these materials is going to break any efficiency records, but we might demonstrate one that uses 1/10th-1/100th of the material of a conventional cell,” Kats said. “And that’s still an interesting parameter to explore when it comes to cost.”
|
